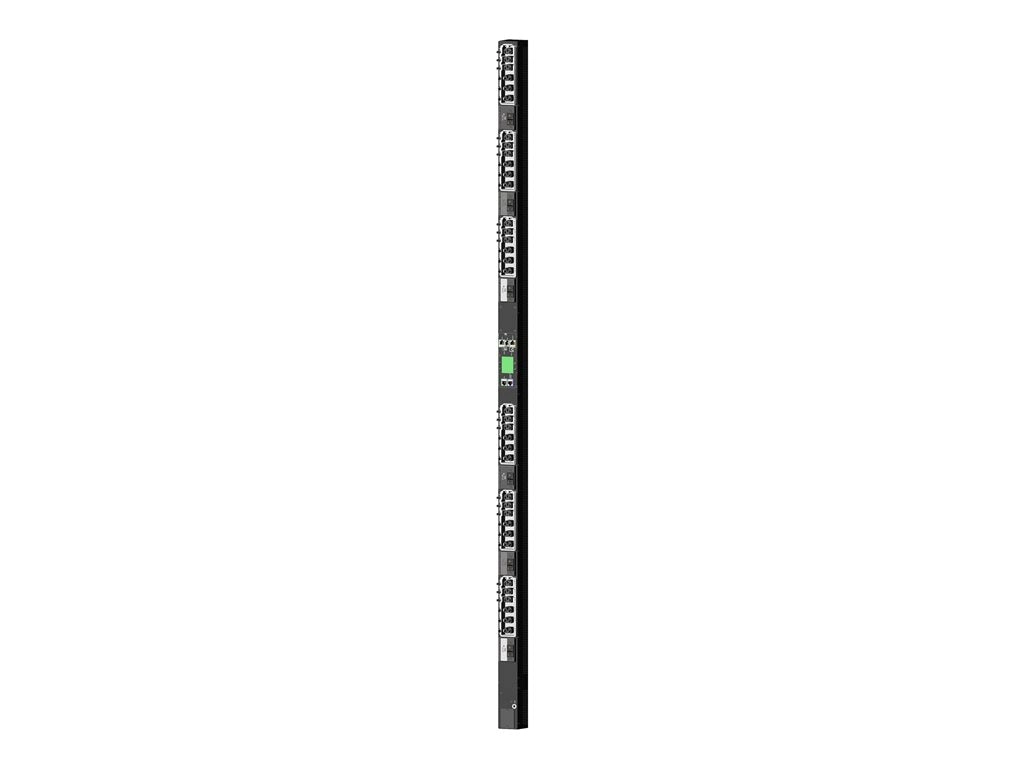

Name: Server Technology PRO3X Switched PDU C3W36RL-DFJE2MT2 - Power distribution unit (rack-mountable) - AC 208 V - 14.4 kW - 3-phase
SKU: 379607

Product Details ＋

Server Technology PRO3X Switched PDU C3W36RL-DFJE2MT2 - Power distribution unit (rack-mountable) - AC 208 V - 14.4 kW - 3-phase - USB, Ethernet 10/100/1000 - input: CS8365 - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)

HDOT Cx
Cx is a future-ready hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Multi-master linking
Maximum 16 multi-linking PDUs can be daisy chained using a USB or Ethernet connection.
ColorMatrix LCD display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
Hot-swap controller
100% field-replaceable while hot, no risk of short circuits. Finger-safe replacement in the unlikely event of an outage.
Ramlock locking outlets
Receptacles have high retention and are compatible with P-Lock type power cords.
Environmental monitoring
PRO3X units support a maximum of 12 daisy-chained Raritan DX2 sensor packages. Receive SNMP-based alerts and e-mail notifications.
Per-Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
Branch current monitoring
Monitors current at each breaker branch and provides SNM-based alerts and e-mails on high usage that risks a tripped circuit.
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489-rated magnetic-hydraulic circuit breakers or UL248 fuses.
Outlet control
On switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
High temperature rating
This product ensures safe and reliable operation in 60°C data center environments.
Color identification
Choose from six colors to designate circuits for rack PDUs in the data center. Color options include blue, red, green, white, yellow, and black.

This Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with the Raritan Xerus technology, a state-of-the-art network interface module. Server Technology's RamLock is a self-locking, elbow-catch mechanism to prevent accidental cord disconnection on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either C13 or C19 outlets. This innovative PDU combines input power and branch current monitoring, and outlet control with support for Raritan Plug-and-Play sensor types, such as temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
